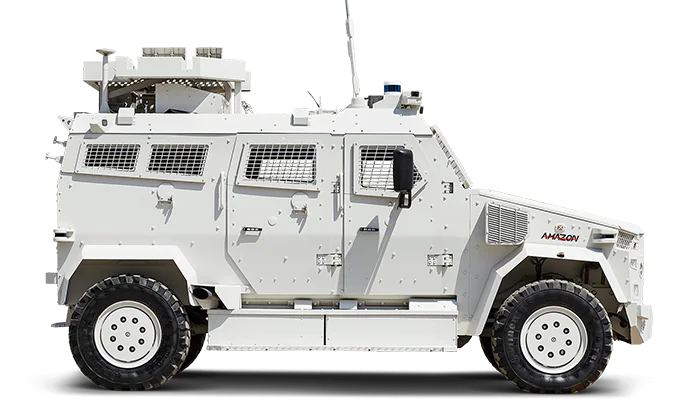

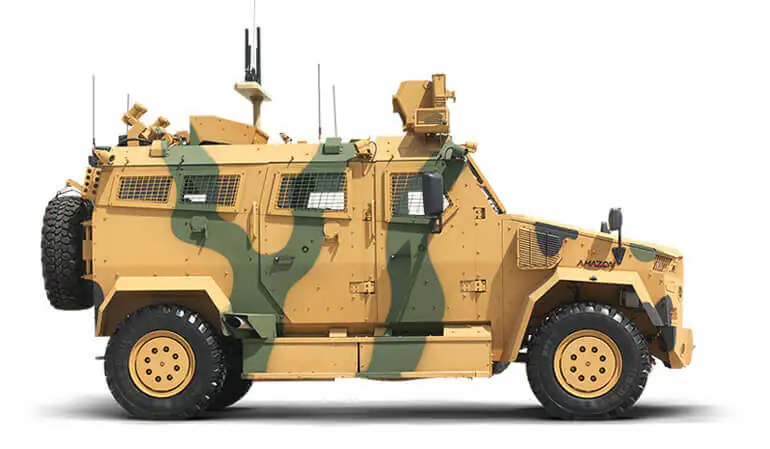

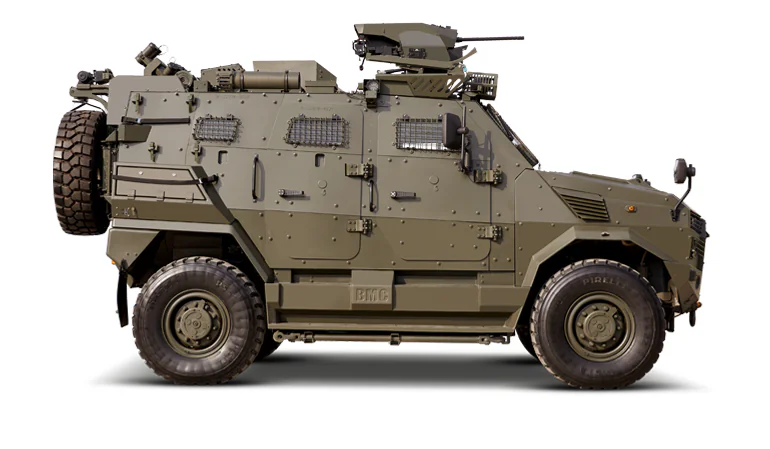

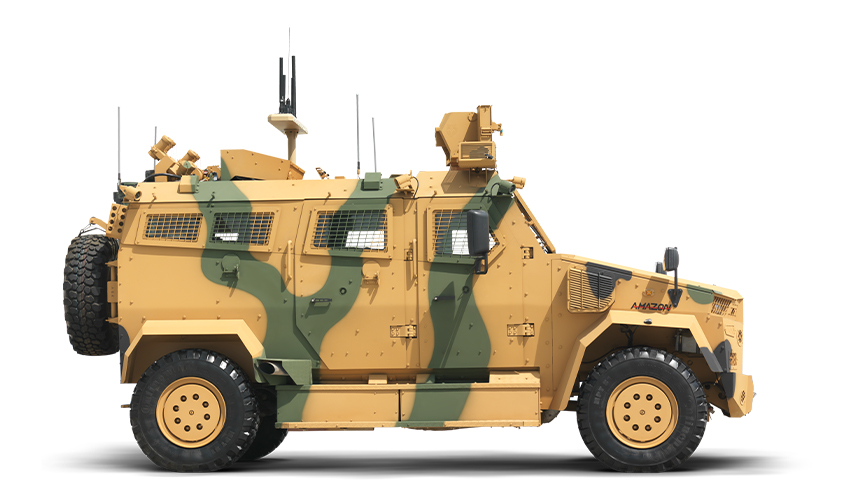

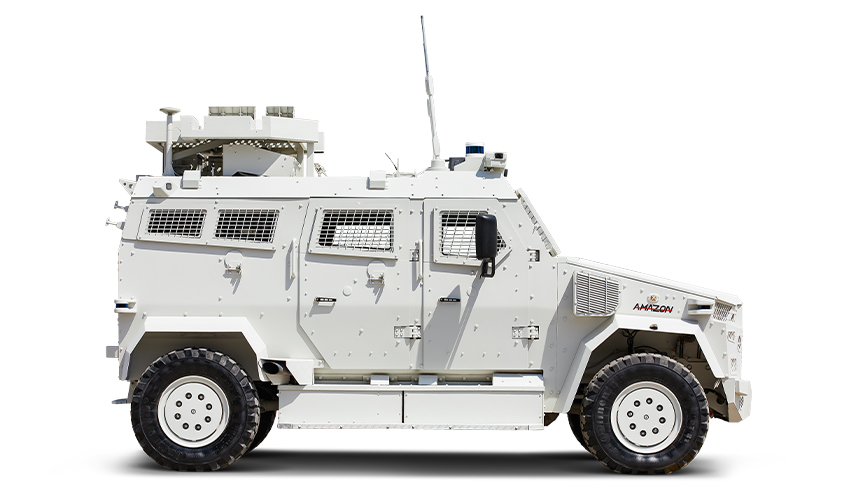

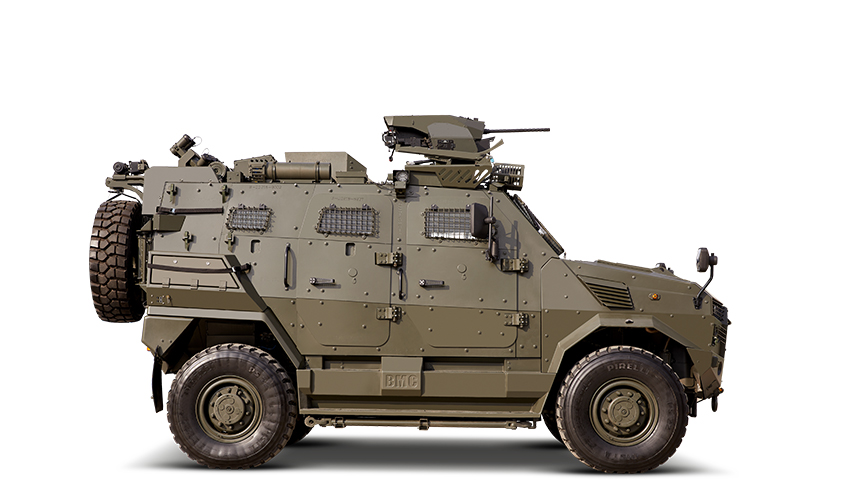

AMAZON 4X4 RCS AMAZON 4X4 OTTONOM AMAZON 4X4

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49 °C
HIGH HUMIDITY (B1)

MID COLD (CO)

-32 °C

Engine

BRAND

Cummins ISB 360

TYPE

Turbo, Intercooler, Diesel

MAX. POWER

360 PS (268 kW) @ 2600 rpm

MAX. TORQUE

1100 Nm @ 1400 rpm

Hull

TYPE

V-shape, monocoque

Transmission

BRAND

Allison 3000 series

TYPE

Fully Automatic with Torque Convertor

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

GHM / Meritor

Tyres & Rims

SIZE / NUMBER

395/85 R 20 & 10 W x 20"

Driveline

AXLES BRAND

AxleTech ISAS 3000 Series

TYPE

4x4

Suspension

FRONT / REAR

Independent Suspension

Protection

STANAG 4569
Ballistic Protection
Mine Protection
IED Protection

Brakes

TYPE

Air Assisted Hydraulic Brake
Hydraulic Hand Brake, ABS

Electrical

VOLTAGE

24 Volt

BATTERIES

2 x 12 V, 120 Ah

ALTERNATOR

120 A

Armament

Remote Controlled Weapon Stations

Standard Equipment

Fire Extinguishing System
Crew Compartment
Engine Compartment
Runflat
CTIS

Optional Equipment

Smoke Grenade Launchers
Tyres
Extravehicular
Self Protection Winch

Performance

MAX. SPEED

110 km/h

GRADEABILITY

`60%

MAX. SIDE SLOPE

30&

FORDING DEPTH

700 mm

GROUND CLEARANCE

350 mm

RANGE

800 km

Dimensions

LENGHT

5500 mm

LENGHT (WITH SPARE TIRE)

6050 mm

WIDTH

2500 mm

HEIGHT

2600 mm

HEIGHT (WITH RCWS)

3450 mm

NUMBER OF SEATS

up to 7

Weight

GROSS VEHICLE WEIGHT

14500 kg

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49 °C
HIGH HUMIDITY (B1)

MID COLD (CO)

-32 °C

Engine

BRAND

Cummins ISB 360

TYPE

Turbo, Intercooler, Diesel

MAX. POWER

360 PS (268 kW) @ 2600 rpm

MAX. TORQUE

1100 Nm @ 1400 rpm

Hull

TYPE

V-shape, Monocoque

Transmission

BRAND

Allison 3000 Series

TYPE

Fully Automatic with Torque Converter

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

GHM MTC (Two Speed)

Tyres & Rims

SIZE / NUMBER

395/85 R 20 & 10W x 20"

Driveline

BRAND

AxleTech ISAS 3000 Series

TYPE

4x4

Suspension

FRONT / REAR

Independent Suspension

Protection

STANAG 4569
Ballistic Protection
Mine Protection
IED Protection

Brakes

TYPE

Air Assisted Hydraulic Brake
Hydraulic Hand Brake, ABS

Electrical

VOLTAGE

24 V

BATTERIES

2 x 12V, 180Ah

ALTERNATOR

180 A

Armament

Remote Controlled Weapon Stations

Standard Equipment

Fire Suppression System
Crew Compartment
Engine Compartment
A/C System
Arctic Kit (-32°C)
Runflat
CTIS

Optional Equipment

CBRN, Smoke Grenade Launchers
Fire Suppression System
Tyres, Outside
RPG Protection
Self Protection Winch
Jammer

Basic Specifications

Artificial Intelligence Based Autonomous Driving
360° Camera, LIDAR, RADAR, Thermal Vision and Night Vision Systems
Object Tracking with Advanced Level Sensor Fusion

Mission Fields

Advance Force, Reconnaissance and Surveillance
Patrol, Search and Rescue, Logistic Support

Weights

GROSS VEHICLE WEIGHT

14500 kg

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49 °C
HIGH HUMIDITY (B1)

MID COLD (CO)

-32 °C

Engine

BRAND

Cummins ISB 360

TYPE

Turbo, Intercooler, Diesel

MAX. POWER

360 PS (268 kW) @ 2600 rpm

MAX. TORQUE

1100 Nm @ 1400 rpm

Hull

TYPE

V - Shape, Monocoque

Seats

Up to 7

Transmission

BRAND

Allison 3000 series

TYPE

Fully Automatic with Torque Convertor

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Meritor / GHM

Tyres & Rims

SIZE / NUMBER

395 / 85 R 20 & 10 W x 20"

Driveline

AXLES BRAND

AxleTech Series

TYPE

4x4

Suspension

FRONT / REAR

Independent Suspension

Protection

STANAG 4569
Ballistic Protection
Mine Protection
IED Protection

Brakes

TYPE

Air Assisted Hydraulic Brake
Hydraulic Hand Brake, ABS

Electrical

BRAND

MIL STD 1275

VOLTAGE

24 Volt

BATTERIES

2 x 12V, 120Ah

ALTERNATOR

180 A

Armament

Remote Controlled Weapon Stations (Opt.)

Standard Equipment

Fire Extinguishing System (Crew Compartment, Engine Compartment)
A/C System
Arctic Kit (-32°C)
Runflat
CTIS

Optional Equipment

Smoke Grenade Launchers
Fire Suppression System
Tyres
Outside
Extravehicular
Self Recovery Winch

Performance

MAX. SPEED

110 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

700 mm

GROUND CLEARANCE

350 mm

RANGE

800 km

Dimensions

LENGHT

5500 mm

LENGHT (WITH SPARE TIRE)

6050 mm

WIDTH

2500 mm

HEIGHT

2600 mm

HEIGHT (With RCWS)

3450 mm
