General Technical Specifications Gallery

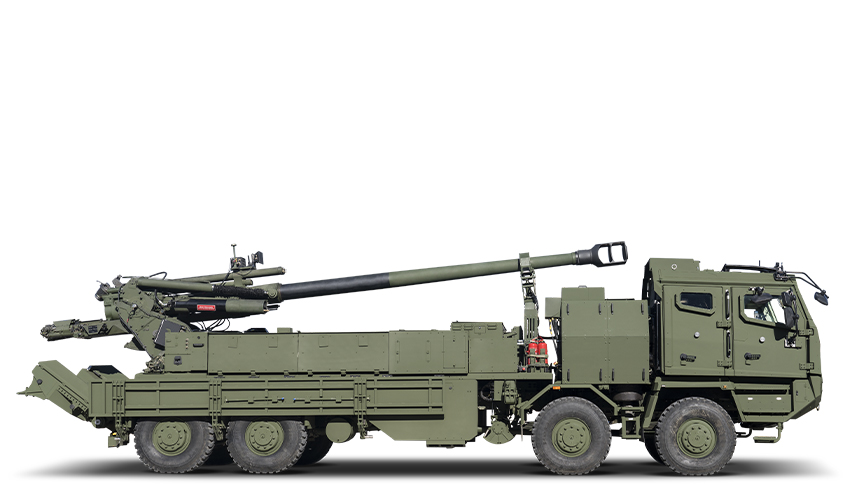

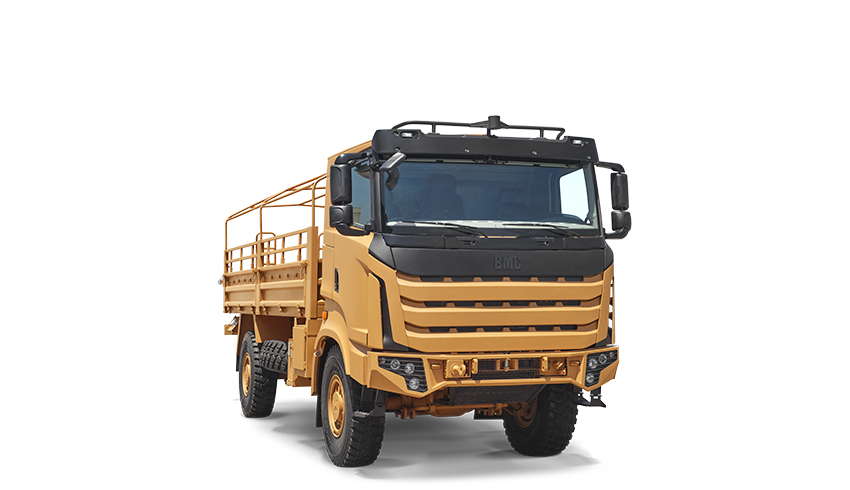

8x8 TWV VEHICLE MOUNTED T-155 PANTHER HOWITZER 10 TON (6X6) NEW CABIN 5 TON (4X4) 5 TON TWV (4X4) 10 TON (6X6) 5 TON ARMORED (4X4)

Performance

MAX SPEED

90 km/h

MAX. GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

800 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49°C
High Humidity (B1)

MID COLD (CO)

-32°C

Protection

STANAG 4569 ceritified

Engine

BRAND

Cummins ISB6.7 285 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

6,7 lt

MAX. POWER

210 kW (285 PS) @ 2500 rpm

MAX. TORQUE

970 Nm @ 1200 rpm

Transmission

BRAND

Allison 3500 Series

TYPE

Automatic

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Axletech BT600

Driveline and Suspension

BRAND

AxleTech 4000 Series

TYPE

Rigid, 4x4

FRONT CAPACITY

9500 kg

REAR CAPACITY

11000 kg

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Brakes

BRAKE SYSTEM TYPE

Drum Type
Full Air Dry Type Service Brake System, Exhaust Brake or Engine Brake
Air Actuated Spring Parking Brake
ABS (Opt.)

Electrical

VOLTAGE

24 V, Negative Ground

BATTERIES

4 x 12 V, 120 Ah

ALTERNATOR

120 A

Standard Equipment

A/C System
Independent Cabin Heater

Optional Equipment

Self Recovery Winch
Runflat
CTIS

Weights

KERB WEIGHT

10400 kg

PAYLOAD

8600 kg

GROSS VEHICLE WEIGHT

19000 kg

Dimensions

WHEELBASE

4800 mm

OVERALL LENGHT

9000 mm

OVERALL HEIGHT

3300 mm

OVERALL WIDTH

2600 mm

Performance

MAX. SPEED

90 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

800 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Environmental Conditions

MIL STD 810G

MID COLD (CO)

-30°C

BASIC HOT (A2)

+49°C
HIGH HUMIDITY (B1)

Engine

BRAND

Cummins ISM380 E30 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

Displacement

11,8 lt

MAX. POWER

279 kW (375 PS) @ 1900 rpm

MAX. TORQUE

2000 Nm @ 1000 rpm

Transmission

BRAND

Allison 4500 Series

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

ZF (Two Speed)

Driveline and Suspension

AXLES BRAND

AxleTech 4000 Series

TYPE

Rigid, 6x6

FRONT CAPACITY

10000 kg

REAR CAPACITY

10000 kg

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Brakes

TYPE

Full Air Dry Type Service Brake System
Air Actuated Spring Parking Brake
Jacobs Brake
ABS

Electrical

VOLTAGE

24 V

BATTERIES

4 x 12 V, 120 Ah

Standard Equipment

A/C System
Independent Cabin Heater

Weights

GROS VEHICLE WEIGHT

29000 kg

Dimensions

WHEELBASE

4450-5380 mm

OVERALL LENGHT

9340-10270 mm

OVERALL HEIGHT

3400 mm

OVERAL WIDTH

2620 mm

NUMBER OF SEATS

1+2

Performance

MAX. SPEED

100 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

1000 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49°C
HIGH HUMIDITY (B1)

MID COLD (CO)

-32°C

Engine

BRAND

Cummins 61SBe 245 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

6,7 lt

MAX. POWER

180 kW (245pS) @ 2500 rpm

MAX. TORQUE

925 Nm @ 1700 rpm

Transmission

BRAND

Allison 3000 Series

TYPE

Fully Automatic

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Axletech BT600

Driveline and Suspension

AXLES BRAND

Axletech 4000 series

TYPE

Rigid, 4x4

FRONT CAPACITY

7500 kg

REAR CAPACITY

9500 kg

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Brakes

BRAKE SYSTEM TYPE

Drum Type
Fully Air Dry Type Service Brake System, Exhaust Brake, ABS (Opt.)
Air Operated Spring Parking Brake

Electrical

VOLTAGE

24 V, Negative Ground

BATTERIES

4 x 12 V, 120 Ah

ALTERNATOR

70 A

Standard Equipment

A/C System
Independent Cabin Heater

Weights

KERB WEIGHT

8100 kg

PLAYLOAD

7900 kg

GROSS VEHICLE WEIGHT

16000 kg

Dimensions

WHEELBASE

4800 mm

OVERALL LENGTH

8750 mm

OVERALL HEIGHT

3150 mm

ANGLE OF APPROACH

35°

ANGLE OF DEPARTURE

31°

NUMBER OF SEATS

up to 3

Optional Equipment

Self Recovery Winch
Runflat
CTIS

Performance

MAX. SPEED

100 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

1000 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49°C
HIGH HUMIDITY (B1)

MID COLD (CO)

-32°C

Engine

BRAND

Cummins 61SBe 245 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

6,7 lt

MAX. POWER

180 kW (245pS) @ 2500 rpm

MAX. TORQUE

925 Nm @ 1700 rpm

Transmission

BRAND

Allison 3000 Series

TYPE

Fully Automatic

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Axletech BT600

Driveline and Suspension

AXLES BRAND

Axletech 4000 series

TYPE

Rigid, 4x4

FRONT CAPACITY

7500 kg

REAR CAPACITY

9500 kg

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Brakes

BRAKE SYSTEM TYPE

Drum Type
Fully Air Dry Type Service Brake System, Exhaust Brake, ABS (Opt.)
Air Operated Spring Parking Brake

Electrical

VOLTAGE

24 V, Negative Ground

BATTERIES

4 x 12 V, 120 Ah

ALTERNATOR

70 A

Standard Equipment

A/C System
Independent Cabin Heater

Optional Equipment

Self Recovery Winch
Runflat
CTIS

Weights

KERB WEIGHT

8100 kg

PLAYLOAD

7900 kg

GROSS VEHICLE WEIGHT

16000 kg

Dimensions

WHEELBASE

4800 mm

OVERALL LENGTH

8750 mm

OVERALL HEIGHT

3150 mm

ANGLE OF APPROACH

35°

ANGLE OF DEPARTURE

31°

NUMBER OF SEATS

up to 3

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49°C
HIGH HUMIDITY (B1)

MID COLD (CO)

-30°C

Engine

BRAND

Cummins ISG

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

Displacement

11,8 lt

MAX. POWER

279 kW (375 HP) @ 1900 rpm

MAX. TORQUE

2000 Nm @ 1000 rpm

Transmission

BRAND

Allison 4500 Series

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

ZF (Two Speed)

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Driveline and Suspension

AXLES BRAND

AxleTech 4000 Series

TYPE

Rigid, 6x6

FRONT CAPACITY

10000 kg

REAR CAPACITY

10000 kg

Brakes

TYPE

Full Air Dry Type Service Brake System
Air Actuated Spring Parking Brake
Jacobs Brake
ABS

Electrical

VOLTAGE

24 V

BATTERIES

4 x 12 V, 120 Ah

Standard Equipment

A/C System
Independent Cabin Heater

Optional Equipment

Self Rescue Crane
Runflat
CTIS

Performance

MAX. SPEED

90 km/h

GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING

800 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Dimensions

WHEELBASE

4450-5380 mm

OVERALL LENGTH

9340-10270 mm

OVERALL HEIGHT

3400 mm

OVERALL WIDTH

2620 mm

NUMBER OF SEATS

1+2

Weights

KERB WEIGHT

12550 kg

PAYLOAD

13450 kg

Protection

STANAG 4569 ceritified

Performance

MAX SPEED

90 km/h

MAX. GRADEABILITY

60%

MAX. SIDE SLOPE

30%

FORDING DEPTH

800 mm

GROUND CLEARANCE

400 mm

RANGE

800 km

Environmental Conditions

MIL STD 810G

BASIC HOT (A2)

+49°C
High Humidity (B1)

MID COLD (CO)

-32°C

Engine

BRAND

Cummins ISB6.7 285 Euro-3

TYPE

Turbo, Intercooler, Diesel

NUMBER OF CYLINDERS

6

DISPLACEMENT

6,7 lt

MAX. POWER

210 kW (285 PS) @ 2500 rpm

MAX. TORQUE

970 Nm @ 1200 rpm

Transmission

BRAND

Allison 3500 Series

TYPE

Automatic

NUMBER OF GEARS

6 Forward, 1 Reverse

Transfer Case

BRAND

Axletech BT600

Driveline and Suspension

BRAND

AxleTech 4000 Series

TYPE

Rigid, 4x4

FRONT CAPACITY

9500 kg

REAR CAPACITY

11000 kg

Tyres & Rims

SIZE / NUMBER

14.00 R 20 & 10 x 20"

Brakes

BRAKE SYSTEM TYPE

Drum Type
Full Air Dry Type Service Brake System, Exhaust Brake or Engine Brake
Air Actuated Spring Parking Brake
ABS (Opt.)

Electrical

VOLTAGE

24 V, Negative Ground

BATTERIES

4 x 12 V, 120 Ah

ALTERNATOR

120 A

Standard Equipment

A/C System
Independent Cabin Heater

Optional Equipment

Self Recovery Winch
Runflat
CTIS

Weights

KERB WEIGHT

10400 kg

PAYLOAD

8600 kg

GROSS VEHICLE WEIGHT

19000 kg

Dimensions

WHEELBASE

4800 mm

OVERALL LENGHT

9000 mm

OVERALL HEIGHT

3300 mm

OVERALL WIDTH

2600 mm
